FTI Finish Thompson Inc.

Self-Priming Wet End Magnetic Drive Pump with Carbon Bushing

Model: PUN316

Mfr. No.: SP11V-W

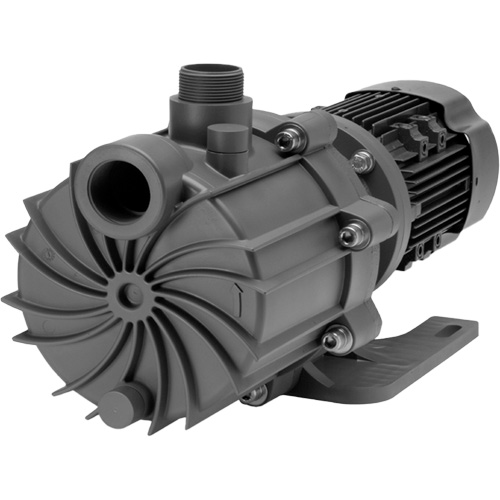

  • Self-Priming Wet End Magnetic Drive Pump with Carbon Bushing WestPier

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Manufacturer's Warranty

  • 5 Years

Intake Size

1-1/2"

Discharge Port Size

1-1/2"

Suction Head

68'

Connection Type

NPT

Impeller Size

4.625"

Magnet Type

6-Pole

Material

PVDF

Max. Flow

104 GPM

Max. Operating Temperature

220°F (104°C)

Max. Pressure

90 PSI

Motor Frame Size

56C

Country Of Origin

United States

  • Self-priming, magnetic drive
  • Provides up to 25 ft. (7.6 m) lift or equivalent
  • Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller
  • Retains fluid for re-priming when shut off without a check valve
  • Extended run dry ability (with carbon bushing)
  • High operating efficiency
  • PVDF construction
  • Powerful neodymium magnets
  • Close-coupled design
  • Threaded (NPT or BSP), union or flange connections
  • Back pullout design
  • Mounts to NEMA and (B5 & B14) IEC motor frames
  • Easy set measurement free drive
  • ISO 1940 G2.5 balancing
  • CE certified
  • High working pressure up to 80 psi (5.5 bar)
  • Specific gravity over 1.8
