Lincoln Electric

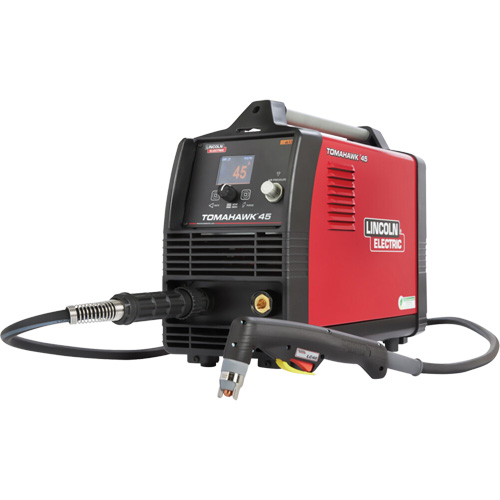

Tomahawk® 45 Plasma Cutter with 20' Hand Torch

Model: TTV732

Mfr. No.: K5458-1

  • Tomahawk® 45 Plasma Cutter with 20' Hand Torch WestPier

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Includes

  • (1) Tomahawk 45 Plasma Cutter
  • (1) K2847-1 LC40 Hand Torch 20 ft Cable
  • (3) KP2843-1 Electrode
  • (3) KP2843-2 Nozzle 40A
  • (2) KP2842-4 Swirl Ring
  • (1) KP2843-5 Retaining Cap (Standard)
  • (1) KP2843-2 Drag Spacer
  • (1) Air Regulator and Pressure Gauge
  • (1) Internal Water Separator
  • (1) Work Clamp and Cable
  • (1) Shoulder Strap
  • (1) Input Power Cord

Voltage Input Power

230 V

Phase Input Power

1 Ph

Hertz Input Power

60 Hz

Rated Output #1A (Current/Voltage/Duty Cycle)

30A/92V/100%

Rated Output #1B (Current/Voltage/Duty Cycle)

40A/96V/60%

Rated Output #1C (Current/Voltage/Duty Cycle)

45A/98V/45%

Input Current At Max Rated Ouput #1

23A

Machines Processes

Plasma Cutting & Plasma Gouging

Max Rating

45A

Gas Supply

Air or Nitrogen

Gas Pressure Required

80 - 110 PSI (6 -7.5 Bar)

  • Portable for plasma cutting and gouging on a wide variety of materials including mild steel, stainless steel, aluminum, brass, and copper
  • Lightweight and Portable – Easily carried by one person
  • Continuous Output Control – Focus the arc for different material thickness
  • Touch Start System – Reliable plasma arc initiation without high frequency
  • Rapid Arc Restrike – Fast cutting through gaps, even expanded metal
  • Cool Operation, Long Consumable Life - Enhanced swirling airflow keeps the electrode and tip cool and increases the life of consumables
  • Added Safety – The Parts-in-Place system detects correct installation of consumables and torch
  • Engine Drive Compatible – Select a Lincoln Electric recommended engine driven welder / generator to power your Tomahawk in remote locations
