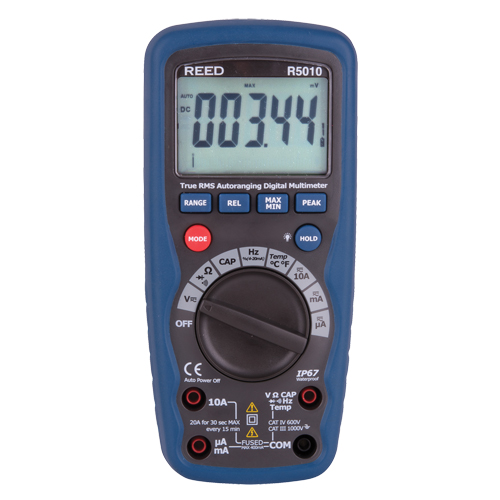

Reed Instruments

Digital Multimeters, AC/DC Voltage, AC/DC Current

Model: XC308

Mfr. No.: R5010

  • Digital Multimeters, AC/DC Voltage, AC/DC Current WestPier

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Thermocouple Adapter WestPier

Reed Instruments

Thermocouple Adapter

Model: HX358

Mfr. No.: R2990

Sold as: Each

Type K Thermocouple Probe - Needle Tip Probes WestPier

Reed Instruments

Type K Thermocouple Probe - Needle Tip Probes

Model: HN213

Mfr. No.: R2960

Sold as: Each

AC Current Clamp-On Adapters WestPier

Reed Instruments

AC Current Clamp-On Adapters

  • Current Readings: AC

Model: IA184

Mfr. No.: CP-09

Sold as: Each

Right-Angle Surface Probe, 13" " L WestPier

Reed Instruments

Right-Angle Surface Probe, 13" " L

  • Measuring Range: -58 to 932°F (-50 to 500°C)
  • Ideal Applications: Laboratory, industrial, medical, HVAC/R and food service

Model: IB879

Mfr. No.: R2930

Sold as: Each

Air/Gas Thermocouple Probe, 11-1/4" " L WestPier

Reed Instruments

Air/Gas Thermocouple Probe, 11-1/4" " L

  • Measuring Range: -58 to 1652°F (-50 to 800°C)
  • Ideal Applications: Laboratory, industrial, medical and HVAC/R

Model: IB880

Mfr. No.: R2940

Sold as: Each

Beaded Thermocouple Wire Probe WestPier

Reed Instruments

Beaded Thermocouple Wire Probe

Model: HK953

Mfr. No.: TP-01

Sold as: Each

Carrying Cases, Soft Case WestPier

Reed Instruments

Carrying Cases, Soft Case

  • Outside Depth: 2"
  • Outside Length: 9"
  • Outside Width: 4"

Model: HN416

Mfr. No.: CA-05A

Sold as: Each

Basic Test Leads, 48" " L WestPier

Reed Instruments

Basic Test Leads, 48" " L

  • Length: 48"

Model: IA181

Mfr. No.: R1000

Sold as: Each

Fused Test Lead Sets WestPier

Reed Instruments

Fused Test Lead Sets

Model: IA707

Mfr. No.: R1020

Sold as: Each

Immersion Thermocouple Probe, 11-1/4" " L WestPier

Reed Instruments

Immersion Thermocouple Probe, 11-1/4" " L

  • Measuring Range: -58 to 1112°F (-50 to 600°C)
  • Ideal Applications: Laboratory, food service and industrial

Model: IB881

Mfr. No.: R2950

Sold as: Each

Voltage Readings

AC/DC

Current Readings

AC/DC

AC/DC Voltage Range

1000 V

Voltage Accuracy

AC ±1.0%, DC ±0.05%

AC/DC Current Range

10 A

Current Accuracy

AC ±1.5%, DC ±1.0%

Resistance Range

40 MΩ

Resistance Accuracy

±0.3%

Frequency Accuracy

±0.1%

Capacitance Range

40 mF

  • 0.05% basic DC accuracy
  • 40 000-count resolution
  • Measures frequency, capacitance and temperature
  • True RMS AC/DC voltage and current measurements
  • Diode check and continuity test
  • Backlit LCD readout with analog bar graph
  • 1000 V input protection on all ranges
  • 4-20 mA process loop measurements with % readout
  • Data hold, Max/Min recording mode
  • Peak capture mode
  • IP67 dust and waterproof
  • EN61010-1 Cat. IV 600 V, Cat. III 1000 V safety rating
  • Includes test leads and 9 V battery
