Reed Instruments

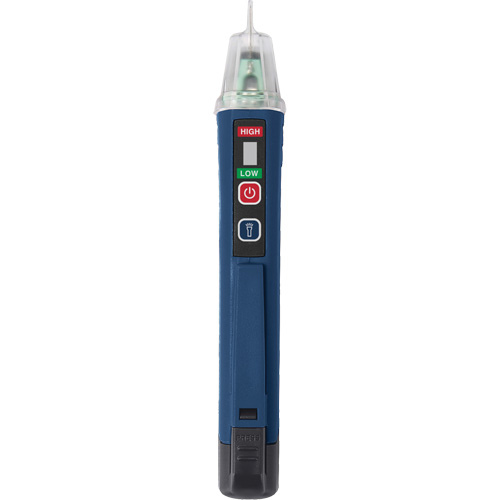

Non-Contact AC Voltage Detector with Flashlight, 24 V - 1000 V/90 V - 1000 V, Light & Sound Alert

Model: IC766

Mfr. No.: R5110

  • Non-Contact AC Voltage Detector with Flashlight, 24 V - 1000 V/90 V - 1000 V, Light & Sound Alert WestPier

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Voltage Detection

24 V - 1000 V/90 V - 1000 V

Alert Type

Light & Sound

Voltage Range Modes

Low (24 - 1000 VAC), High (90 - 1000 VAC)

Frequency Range

50 - 60 Hz

Power Supply

(2) AAA Batteries

Overvoltage Category

CAT. IV 1000V

Certification(s)

CE, ETL

Operating Temperature

32 - 104°F (0 - 40°C)

Storage Temperature

-4 - 122°F (-20 - 50°C)

Operating Humidity Range

0 - 80%

Maximum Operating Altitude

6561' (2000 m)

  • Provides the ability to detect the presence of AC voltage from a safe distance
  • Features two voltage ranges allowing it to detect both high (90 to 1000V) and low (24 to 1000V) AC voltage wiring
  • Suitable for receptacles or against insulated wire
  • Double insulated housing for increased safety
  • Audible (buzzer) and visual (LED) indicators
  • Built-in flashlight
  • Pocket clip
  • Auto shut off
  • Includes: (1) Non-contact AC voltage detector, (2) AAA batteries
